Tariffs

Tariff plans

This section appeared in version 2.2.0.

To go to the section, open the "Service Management" menu and click "Tariff plans".

The section looks like the picture below.

Billing Profiles

Here you can create billing plan profiles, as well as edit and delete them.

You can manage tariff plans for only one selected equipment.

Create a billing plan profile

This form must include:

Edit billing profile

In this form, you can only change the name of the tariff plan.

Billing plan configuration

Here you can edit the tariff plan profile configuration.

More details about the configuration of tariff plans in the Subscribers channel policing section.

Simplified form

In this form, it is possible to set the speed of incoming and outgoing traffic (similar to the form for creating a tariff plan profile).

Normal form

In this form, it is possible to set the following values for each of the classes:

Ceil for the root class is optional.

The sum of the rate classes must not exceed the total size of the band, otherwise the behavior is undefined.
Extended form

In this form, it is possible to select the type of policing (HTB or TBF).

Depending on the selected type of policing in the form, it is possible to edit different data for each of the classes.

For HTB policing type:

For TBF policing type:

Editor

Manage subscriber tariff plans

It is described in detail in the section Subscribers and services

Tariff schedule

This section allows you to create schedule for tariff plans. After the schedule is created and saved, selected sub-tariffs will be applied according to its settings.

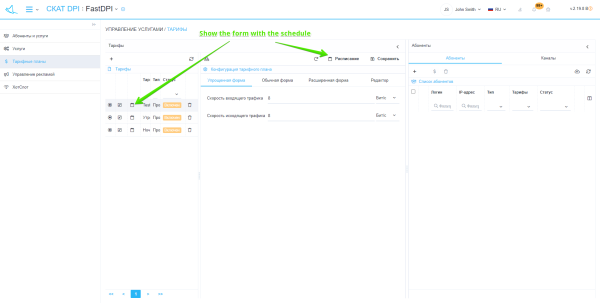

To open the form with the schedule of the tariff plan, you should to select one of the tariff plans in the “Tariff plans” section and click on the “Schedule” button. You can also open the form by clicking on the calendar icon located opposite each tariff plan.

(Figure 1)

Tariff plan schedule setting form

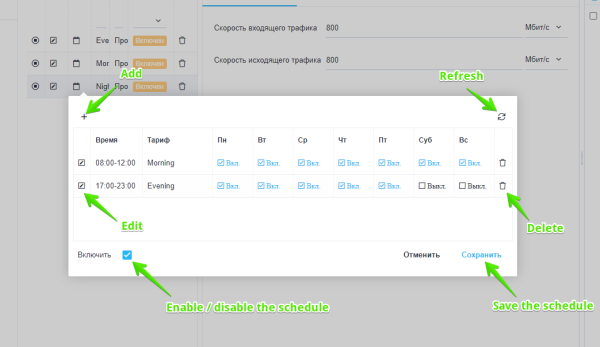

Here you can create, modify and delete a schedule for the selected tariff plan.

Also, you can disable the schedule for a particular tariff plan.

(Figure 2)

On this form are located:

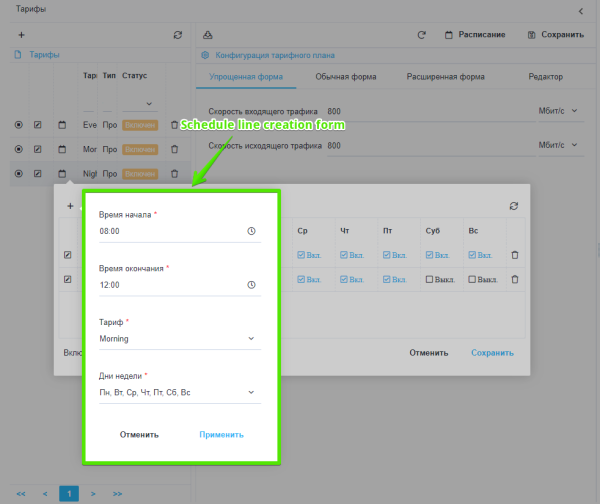

Create a tariff plan schedule

(Figure 3)

You must specify the following in this form:

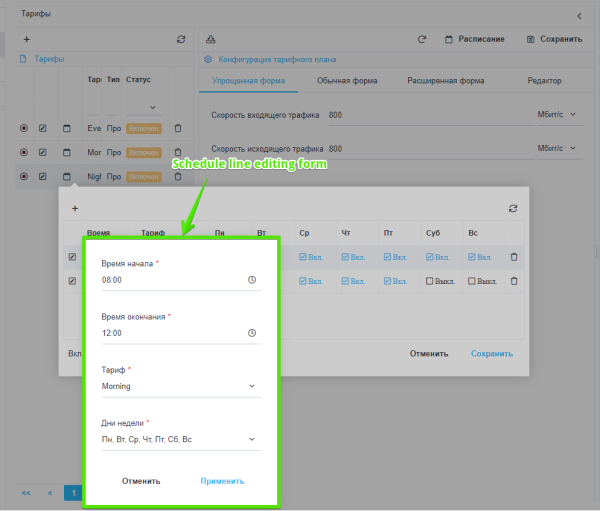

Edit the schedule of the tariff plan

You can modify the time, tariff name, and days of week in this form.

(Figure 4)
