FastBypass monitor
If there is a software failure on DPI, the NPB removes the DPI from the stack and redistributes the load among the remaining DPIs.
If more than two DPI nodes fail, the entire system switches to bypass mode.
If the link on a DPI fails, NPB redistributes the load among the remaining DPIs.

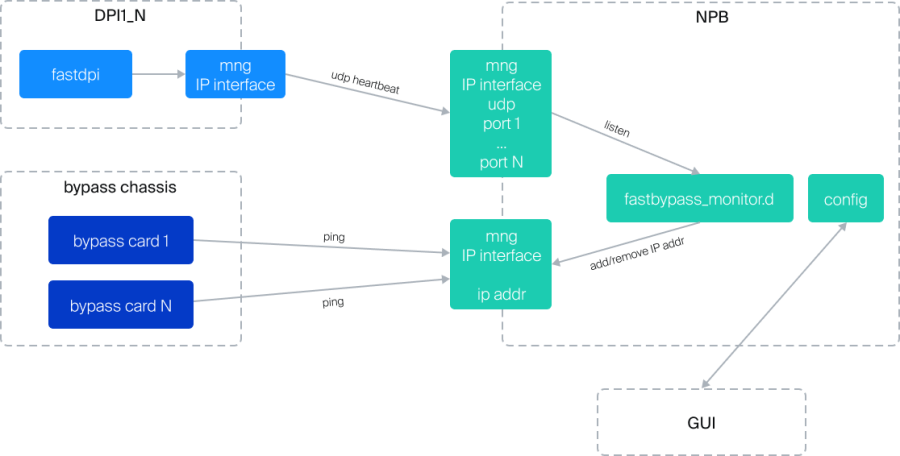

fastbypass_monitor (referred to as "daemon" further in the documentation and script) is a tool for monitoring and managing the state of network interfaces connected to Bypass network cards.
The daemon reacts to HEARTBEAT signals received from DPI on specific ports defined in the configuration file. If HEARTBEAT signals are not received according to the configuration rules, the daemon performs specific actions such as deleting or creating IP addresses connected to the Bypass cards and enabling or disabling certain network interfaces.
Hardware Requirements
OS: OpenSwitch 2+ / Debian 9+
Python: 2.7.9
Key Features
- Monitoring HEARTBEAT signals from DPI on specified ports.
- Dynamic management of IP addresses and network interfaces.
Installation
- Copy the installation package
fastbypass_monitor-X.X.XX.debto the host machine. - Run the following command from the directory where the package is located:
sudo dpkg -i fastbypass_monitor-X.X.XX.deb
After installation, the daemon becomes manageable through the system manager (systemctl).
The configuration file is available at /var/fastbypass_monitor/backend/.env
A sample configuration file can be found at /var/fastbypass_monitor/backend/sample.env
Daemon logs are stored at /var/fastbypass_monitor/backend/logs/
Usage
After installation, the daemon runs automatically. Upon reboot, it starts after the network service has successfully launched.
Manage the daemon using system manager commands.
Aliases (short command equivalents) can only be used with sudo. Use sudo su - and enter the password to enable this mode.
Start the daemon:
sudo systemctl start fastbypass_monitor
Alias:
fbypass_ctl start
Restart the daemon:
sudo systemctl restart fastbypass_monitor
Alias:
fbypass_ctl restart
Reload the daemon without stopping:
sudo systemctl reload fastbypass_monitor
Alias:
fbypass_ctl reload
Stop the daemon:
sudo systemctl stop fastbypass_monitor
Alias:
fbypass_ctl stop
Check the daemon’s status:
sudo systemctl status fastbypass_monitor
Alias:
fbypass_ctl status
View the last few lines of the log file in real-time:
tail -f /var/fastbypass_monitor/backend/logs/fastbypass_monitor.log
Alias:
fbypass_ctl tailf
Output the last 100 lines of the log:
tail -n 100 /var/fastbypass_monitor/backend/logs/fastbypass_monitor.log
Alias:
fbypass_ctl tail 100
Stop the daemon and remove IPs from Bypass cards, forcing the system into bypass mode:
fbypass_ctl force_on
Stop the daemon and add IPs to Bypass cards, forcing the system into normal mode:
fbypass_ctl force_off
Add the daemon to startup:
fbypass_ctl enable
Remove the daemon from startup:
fbypass_ctl disable
To configure and launch the daemon with new settings, edit the configuration file and restart or stop and start the daemon.
The daemon configuration is located at /var/fastbypass_monitor/backend/.env
In case of a critical error, the daemon will restart automatically.
Using sudo systemctl reload fastbypass_monitor will reload the configuration without stopping the daemon, shutting down removed components, and adding new ones.
During startup and reload, the daemon does not manage interfaces and IPs until all listeners report their statuses. After a restart, the daemon remains in its previous state until receiving updates from all listeners.
Local and Global States: Bypass Mode
The daemon manages interfaces based on either a global state (depending on all listeners) or a local state (specific to individual listeners).
For instance, if you list interfaces in the global settings, they will be enabled or disabled based on the daemon’s overall state. If the daemon fails to receive enough signals, the interfaces are disabled.
Example:
LISTEN_CUBRO_IFS=<interface list> LISTEN_SHUTDOWN_CUBRO_IFS_WHEN_BYPASS=1
Each listener can also have its own interface list that it manages based on its state.
Example:
LISTEN_CUBRO_IFS[0]=<interface list> LISTEN_SHUTDOWN_CUBRO_IFS_WHEN_BYPASS[0]=1
If an interface appears in multiple listeners' lists, it switches to bypass mode if any listener stops receiving signals. The interface returns to normal mode only if all listeners are active.
If an interface appears in both local and global settings, it remains in bypass mode until the corresponding listener starts receiving signals and the daemon switches to normal mode.
Configuration
Minimal Configuration
A minimal configuration requires specifying at least one interface, IP address, and port for receiving HEARTBEAT signals, along with one interface and IP for Bypass cards.
Example:
LOG_LEVEL=INFO LISTEN_HEARTBEAT_IFS=eth0 BYPASS_CARD_IFS=eth0 LISTEN_HEARTBEAT_FAILED=1 LISTEN_HEARTBEAT_ATTEMPTS=1 LISTEN_HEARTBEAT_TIMEOUT=3000 LISTEN_HB_HOST[0]=192.168.1.202 LISTEN_HB_PORT[0]=3000 LISTEN_HB_HOST[1]=192.168.1.202 LISTEN_HB_PORT[1]=3100 BYPASS_CARD_HOST[0]=192.168.1.211 BYPASS_CARD_HOST[1]=192.168.1.212
This example configures the daemon to receive HEARTBEAT signals on interface eth0 at IP 192.168.1.202 and ports 3000 and 3100.
Bypass cards are connected via eth0 at IPs 192.168.1.211 and 192.168.1.212.
Default listener values:
LISTEN_HEARTBEAT_ATTEMPTS: 1
LISTEN_HEARTBEAT_TIMEOUT: 3000 ms
If a listener fails to receive a signal after one attempt within 3000 ms, it is marked as failed.
If the number of failed listeners meets or exceeds the threshold (LISTEN_HEARTBEAT_FAILED), the daemon switches to bypass mode and removes IPs from Bypass cards.
When signals are restored, the listener resumes normal operation.
If the number of failed listeners falls below the threshold, the daemon switches back to NORMAL mode and restores the IPs for the Bypass cards.
